SECURITY - PERFECTLY ORGANIZED
Maximum comfort, keyless operation and new options in furniture design characterize this innovative technology. LEHMANN offers a variety of components which enable the locking, organizing and managing of various properties. The systems operate with radio, keyboard, RFID or biometrics*.
PDF Catalogue Video Video LEHMANN MANAGEMENT SOFTWARE Video E-Solutions Image
*Attention
Regarding technical approval of the particular electronic locking system in your country please contact us
CENTRAL CONTROL PANEL
• Central Control Panel in 10“ or 22“ version with various accessories for operating networked locks; alternatively for showing location the user‘s occupied locker in shared use mode.
• Simple self-service solution for users
• Support of RFID technology, PIN codes and QR codes on the terminal
• Autolock function allows users to lock the storage simply by pushing it closed (no need to present RFID transponder a second time).
• Display of occupied and available lockers
Actuating Elements
CAPTOS
• 13,56 MHz MIFARE / LEGIC
• Operation with (existing) RFID cards or keyfobs*
• Assigned used or shared use operating mode
• Optical and acoustic signals
• Optional LED status display
• Use of smartphones with the LEHMANN transponder app**
• Symmetrical design, can be used left-handed or right-handed
• Suitable for wood, HPL and metal (assembly in metal with additional component)
• Optional ejector for contactless opening
• Mains operation without batteries
• Installation card: universal tool to operate the lock throughout the supply chain up until the client takes possession of the lock
• Configuration via LEHMANN Management Software LMS
• Alternative configuration using master card also possible
The distance between the locks must be at least 5 cm.
* Third-party transponders must be checked in advance for compatibility and range. MIFARE Classic and LEGIC prime transponders are only supported to a limited extent.
** MIFARE systems only support Android smartphones. LEGIC systems without a master-token support Android smartphones and iPhones only with master cards. FW 2.x is required.
CAPTURA 100
Electronic RFID lock with integrated antenna
• MIFARE® Variation: MIFARE® Classic, MIFARE® DESFire® EV1 / EV2
• LEGIC Variation: LEGIC prime, LEGIC advant, HID iClass, MIFARE® Classic, MIFARE® DESFire® EV1 / EV2. Prepared for Bluetooth communication (BLE) with LEGIC Mobile SDK or customer specific solution - available from Q3
• Change of operating mode (assigned use or shared use)
• Change of operating mode (assigned use or shared use)
• Configuration via transponder cards or with LEHMANN Management Software LMS
• Use of smartphones with the LEHMANN transponder app*.
• Use of existing transponders possible**
• Acoustic signalling can be deactivated
• One-Touch Autolock feature
• Battery type: 1 x CR123A
• Assembly in metal with additional component
• Optional: Optical indicator by lightpoint
• Optional: Ejector pin on the lock pushes the door open automatically
• One-Touch Autolock feature
• Battery type: 1 x CR123A
• Assembly in metal with additional component
• Optional: Optical indicator by lightpoint
• Optional: Ejector pin on the lock pushes the door open automatically
Flyer Captura
CAPTURA Homepage
MIFARE® Classic transponders have limited use.
* MIFARE systems only support Android smartphones. LEGIC systems without a master-token support Android smartphones and iPhones only with master cards. FW 2.x is required.
** Third-party transponders must be checked in advance for compatibility and range. MIFARE Classic and LEGIC prime transponders are only supported to a limited extent.

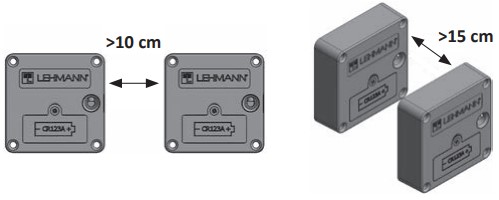

MINIMUM DISTANCE ASSEMBLY AND TRANSPORT
MIFARE variant: Minimum distance between locks side-by-side: 10cm. Minimum distance between locks back-to-back: 15cm.
LEGIC variant: Minimum distance between locks side-by-side: 15cm. Minimum distance between locks back-to-back: 20cm.
M300
Motorised electronic lock with 3-point locking
• Internal battery power supply, no need to worry about cabling for external AC power supply
• Internal battery power supply, no need to worry about cabling for external AC power supply
• Solution for filing cabinets and tall hinge doors
• Also available as a 1-point deadbolt lock
• Right / left mounting
M400
Electronic lock with deadbolt or spring loaded slambolt
• Internal battery power supply, no need to worry about cabling for external AC power supply
• Ideal solution for hinge doors, flaps and single drawers
• Can be combined with SVS Elevon interlock system for pedestals and filing cabinets
• Right / left mounting
M500
Electronic pedestal lock
• Motorised lever cylinder
• Rotating motor with the same dimensions as a mechanical lock
• Flexible due to battery operation internal battery power supply, no need to worry about cabling for external AC power supply for mobile pedestals
• Available with various locking lugs pegs for compatibility with a range of interlock systems

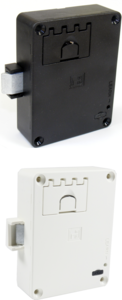

M410
Electronic lock with fixed bolt or spring loaded slambolt
• Simple assembly due to a symmetrical design and 4 standard fastening screws
• Ideal solution for hinge doors, flaps and single drawers
• Right / left mounting
• Increased security against tampering
• Micro USB port for updates and configurations
• 1 battery Typ CR123A
Locker Lock M610 with 13,56MHz MIFARE® L033-A03 / 13,56MHZ LEGIC L043-A03
• MIFARE® RFID-reader compatible with: 13,56MHz MIFARE® Classic / MIFARE® DESFire® EV1, EV2, ISO 14443
• LEGIC RFID-reader compatible with: LEGIC prime, LEGIC advant, MIFARE® Classic, MIFARE® DESFire® EV1 & EV2, HID iClass, ISO 14443, ISO 15693
• Simple installation, also ideally suited for retrofitting• Micro USB port for updates and configurations
• Change of operating mode (assigned use / shared use)
• Use of smartphones with the LEHMANN transponder app*
• Use of existing transponders possible**
• Protection rating IP55 (protected against dust and water jets)
• Withstands destruction test force over 700N applied to the bolt based on DIN 4547-2
• Resistant to disinfectants
• Fixed bolt
• Left hand version and right hand version available
• Optical and acoustical signaling
• Small casing with handle recess
• Optional spacer for mounting on steel and to enlarge the handle recess
• Protection rating IP65 (dust-proof and protected against water jets)
• RFID-Reader for external fitting
MIFARE® Classic and LEGIC prime transponders have limited use.
Compatibility and reading distance of third-party transponders need to be verified.
The distance between the RFID readers must be at least 5 cm.
* MIFARE systems only support Android smartphones. LEGIC systems without a master-token support Android smartphones and iPhones only with master cards. FW 2.x is required.** Third-party transponders must be checked in advance for compatibility and range. MIFARE Classic and LEGIC prime transponders are only supported to a limited extent.
GIRO TA
• Electronic keypad lock
• Change of operating mode (free code / fix code)
• 3-10 digit pin code
• Acoustic and optical signalling
• Highly visible LED in 3 colours (red, yellow, green)
GIRO RFID MIFARE
• RFID MIFARE® lock with integrated antenna
• Change of operating mode (assigned use / shared use)
• Up to 250 transponders can be programmed in assigned use mode
• Compatible with transponders or LEHMANN Transponder App (only for NFC enabled Android smartphones)
• Use of existing transponders (compatibility check is required)
Sensor Elements
RFID
13,56MHZ MIFARE® L033-A01 / 13,56MHZ LEGIC L043-A01
• MIFARE® RFID-reader compatible with: 13,56MHz MIFARE® Classic / MIFARE® DESFire® EV1, EV2, ISO 14443
• LEGIC RFID-reader compatible with: LEGIC prime, LEGIC advant, MIFARE® Classic, MIFARE® DESFire® EV1 & EV2, HID iClass, ISO 14443, ISO 15693
• Change of operating mode (assigned use / shared use)
• Use of smartphones with the LEHMANN transponder app*
• Use of existing transponders possible**
• Optical and acoustical signaling
• Micro USB port integrated in RFID-Reader for emergency power supply via mobile phone charge pack and for firmware updates.
• RFID-Reader installation optional internal or external
• LEGIC L043-A01 compatible with lock M300, M500 and M410
MIFARE® Classic and LEGIC prime transponders have limited use.
Compatibility and reading distance of third-party transponders need to be verified.
The distance between the RFID readers must be at least 5 cm.
* MIFARE systems only support Android smartphones. LEGIC systems without a master-token support Android smartphones and iPhones only with master cards. FW 2.x is required.** Third-party transponders must be checked in advance for compatibility and range. MIFARE Classic and LEGIC prime transponders are only supported to a limited extent.
RFID
13,56MHZ MIFARE® L033-A02 / 13,56MHZ LEGIC L043-A02
• MIFARE® RFID-reader compatible with: 13,56MHz MIFARE® Classic / MIFARE® DESFire® EV1, EV2, ISO 14443
• LEGIC RFID-reader compatible with: LEGIC prime, LEGIC advant, MIFARE® Classic, MIFARE® DESFire® EV1 & EV2, HID iClass, ISO 14443, ISO 15693
• Optical and acoustical signaling
• Use of smartphones with the LEHMANN transponder app*
• Use of existing transponders possible**
• Change of operating mode (assigned use / shared use)
• Small casing with handle recess with L033-A02 and L033-A03 for mounting on pedestal panels
• Optional spacer for mounting on steel and to enlarge the handle recess
• Micro USB port integrated in RFID-Reader for emergency power supply via mobile phone charge pack and for firmware updates.
• RFID-Reader for external fitting
• LEGIC L043-A02 compatible with lock M300, M500 and M410
MIFARE® Classic and LEGIC prime transponders have limited use.
Compatibility and reading distance of third-party transponders need to be verified.
The distance between the RFID readers must be at least 5 cm.
* MIFARE systems only support Android smartphones. LEGIC systems without a master-token support Android smartphones and iPhones only with master cards. FW 2.x is required.** Third-party transponders must be checked in advance for compatibility and range. MIFARE Classic and LEGIC prime transponders are only supported to a limited extent.

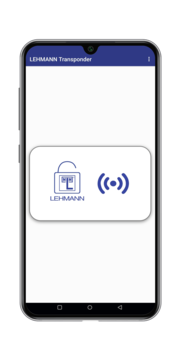

LEHMANN Transponder App
• For the operation of LEHMANN RFID locks
• Configuration and operation processes as with RFID transponders
• Support of both operating modes, “assigned use” and “shared use”
• NFC version for Android smartphones (supported by MIFARE and LEGIC locks)
• Bluetooth version for Apple iPhones (supported by LEGIC locks)
Please note:
• Firmware 2.x is required on the RFID locks or RFID readers
• LEHMANN MIFARE systems only support the NFC version of the app via card programming or LEHMANN Management Software LMS from Vers. 2.x.
• The NFC and Bluetooth versions of the app are supported on LEHMANN LEGIC systems with card programming (not via LMS). Locks with LEGIC master tokens are not supported.
Link iOS
Link Android
KEYPAD TA01
Electronic combination lock with keypad
• Individual code selection
• Use in free code or fixed code mode
• Easy to use
• Stand-alone application
• Master function
• Code setting and modification without additional accessories
• Numerous operating options configurable via keypad
• Optical indicator and battery warning on keypad
• Compatible with locks M300, M400 and M500
KEYPAD TA03
Functions like the above mentioned TA, and additionally:
• Integrated handle function
• IP54 in combination with locker lock M610
• Resistant to cleaning agents and disinfectants
• Firmware updates for TA03 via lock M410 and locker lock M610
• Clearly visible LED signal
• Compatible with lock M410 and locker lock M610
fingerprint scanner
Electronic fingerprint system
• Installation mode: lock and unlock with any finger for test purposes
• Change of operating mode (assigned use or shared use)
• Configuration with admin finger or with the LEHMANN Config-App*
• Optional auto locking function in assigned use mode
• Storage capacity for 200 fingerprints
• Optical and acoustic signals
• Possibility for firmware updates
• Scanning speed is <0.2 seconds
• Battery type: 1x CR123A
* NFC-enabled Android smartphone required. Available from Q2/2023 in the App Store
RADIO TRANSMITTER
2 channel radio transmitter
• Convenient solution with simultaneous actuating of multiple locks
• Programming up to 50 transmitters
• Easy to use
• Standalone application
• Master function
• Programming without additional accessories
• Programming up to 50 transmitters
• Easy to use
• Standalone application
• Master function
• Programming without additional accessories
• Optional with optical indicator for Emergency power supply and battery warning

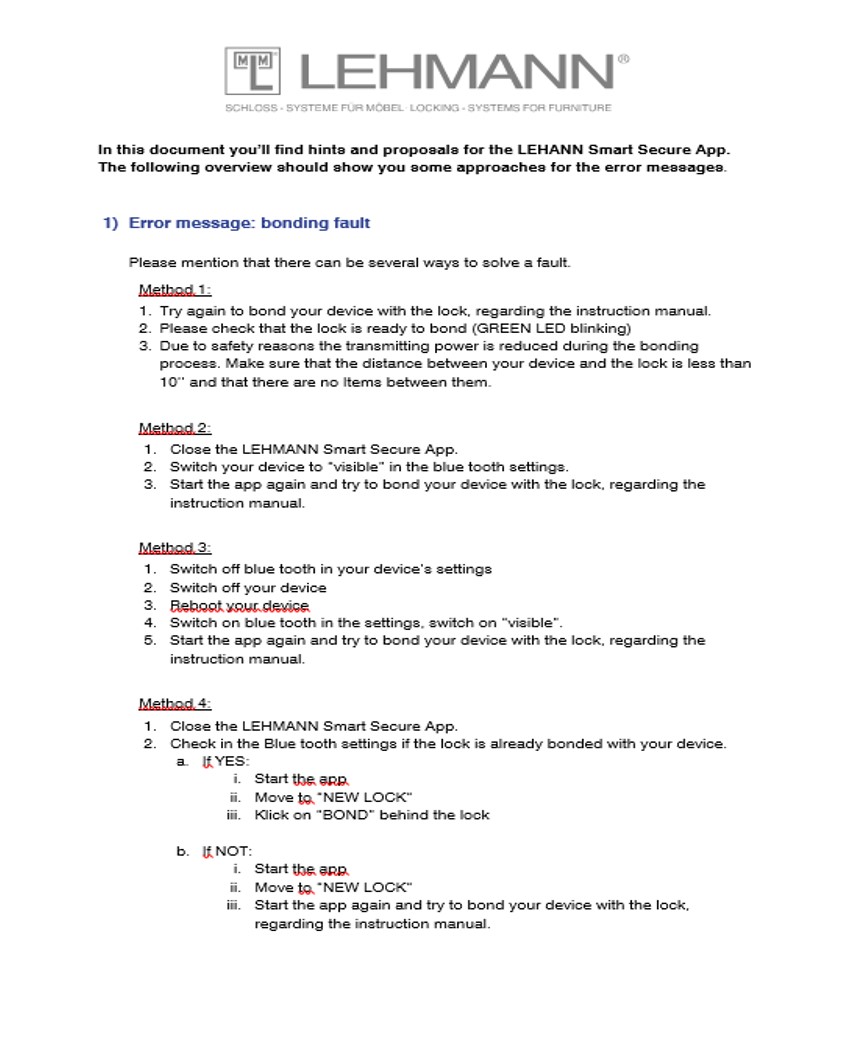

SMART SECURE
Manage cabinet security with your smartphone
• Simple security management, even for complex user configurations
• Basic APP functions are free of charge
• Optional proximity locking and unlocking, with individual range control
• Many other functions available to help you optimize convenience, security and organization of your storage
• Optional use of optical LED indicator for emergency power supply and battery warning

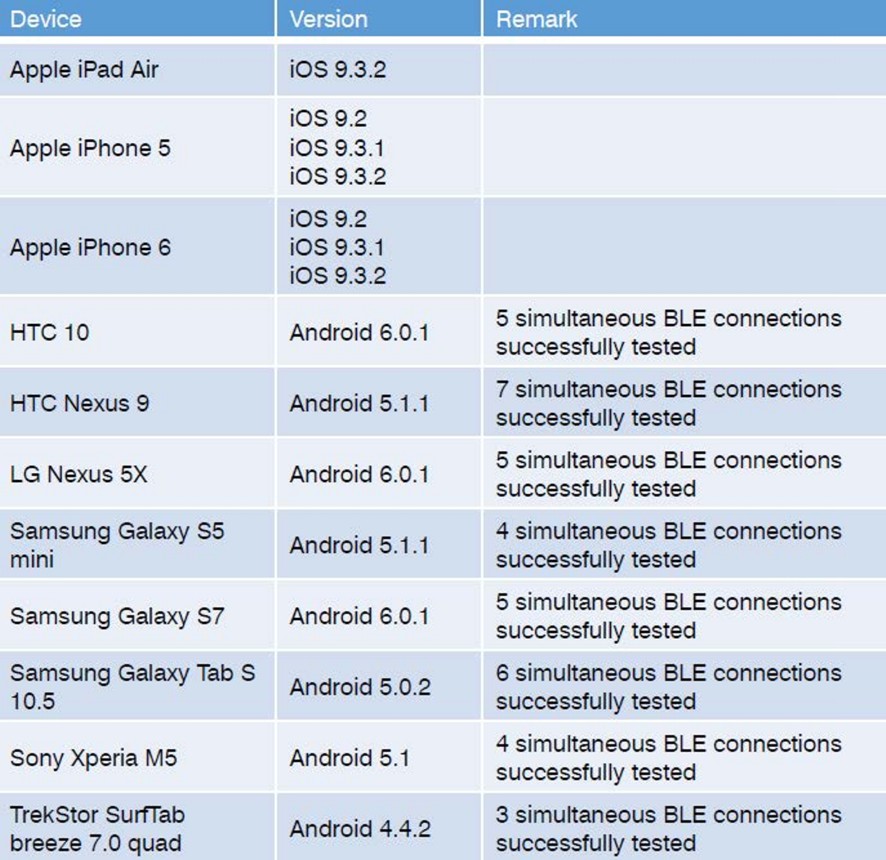

Please note that there may be restrictions on the number of simultaneous Bluetooth connections between smartphone / tablet and the locks due to the different Bluetooth modules that are used in the various smartphones / tablets.
Link iOS
Link Android
